Ideal for e-commerce, warehousing, and manufacturing

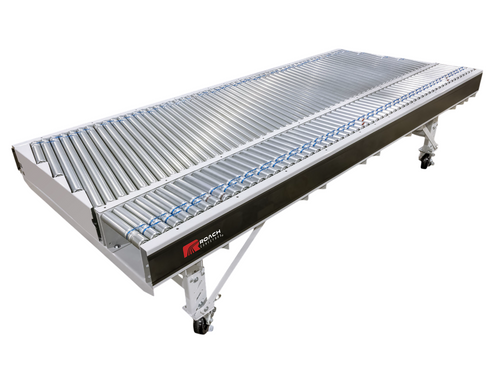

The Roach Conveyors Modular Connect System (MCS) is designed to deliver unmatched flexibility and reliability in high-volume environments. Featuring plug-and-play electrical components and a quick-deploy modular design, it simplifies assembly, extension, and reconfiguration to adapt to changing workflows. Pre-wired, easy-connect conveyors minimize installation time and reduce the need for field cabling. Powered by a robust 1/14 HP, 130V DC motor, the MCS reaches speeds of up to 150 feet per minute and handles loads up to 50 pounds per foot with ease.
- Plug-and-play modular conveyor system
- High-speed operation (up to 150 FPM)
- Handles loads up to 50 lbs/ft
- Flexible configurations: curves, skews, inclines, and more
- Ideal for e-commerce, warehousing, and manufacturing
Equipped with heavy-duty 6-inch casters featuring brake and swivel locks, the system is easy to adjust for evolving business needs. Optional features such as accumulation zones, emergency stop buttons, guard rails, and sensors provide added control and safety. The MCS is a low-maintenance solution ideal for parcel handling, e-commerce, warehousing, distribution centers, and manufacturing applications.
- Load Capacity: 50 lbs/ft
- Speed: 0–150 FPM
- Roller Size: 1.9 inches
- Roller Type: OD Galvanized Grooved Rollers
- Roller Centers: 3 inches
- Widths Available: 27, 36, & 48 inches BF
- Inside Curve Radius: 48 inches
- Module Length: 10 feet
- In-Feed/Discharge Height: 32–48 inches
- Construction: 10” x 1.5” x 10ga Formed Channel Frames
- Casters: Rubber Swivel with Brake and Swivel Lock
- Motor: 1/14 HP, 130V DC Max
- Drive Input: 120VAC, 17.5 Amp Max
- Electrical Connections: M22 & M12 Quick Connect at Each End
- Optional Features: Accumulation, E-Stops, Guard Rails, Coated Rollers, Lightbar Accumulation, ABEC Sealed Precision Bearings
- Module Types: Straights, Curves, Centralizing Herringbones, Side Pushing Skews, Coated Roller Inclines
- Warranty: 12 Months Electrical, 24 Months Mechanical
