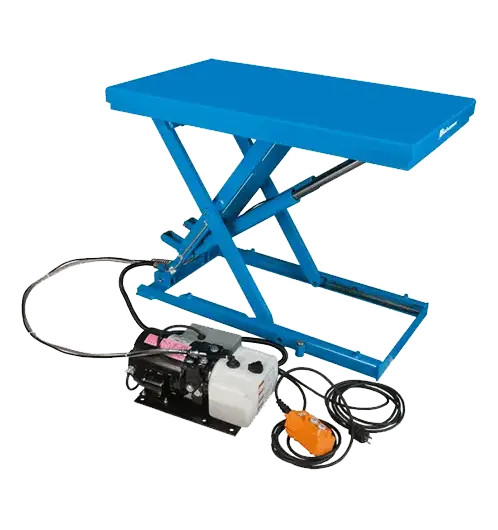

Elevate safety, efficiency, and productivity with the Bishamon LoProfile™ LX Lift Series — available now from Material Flow.
These heavy-duty electro-hydraulic lift tables combine rugged performance with low-profile functionality, making them ideal for use with pallet jacks, carts, and other wheeled equipment. With capacities ranging from 550 to 4,400 lbs. and platform heights starting as low as 2.9 inches, the LoProfile™ Series is the go-to solution for tight-clearance applications in production, assembly, and warehouse environments.
Each model features a full-perimeter electric toe guard to protect operators during operation, while captured scissor rollers ensure smooth, stable lifting. Controlled by a remote hand-held push-button station and powered by an external electro-hydraulic unit with a durable steel braided hose, these lift tables are built for long-lasting reliability and low maintenance.
Optional accessories such as foot-operated controls and approach ramps further enhance flexibility and usability.
-
Product Name: LoProfile™ LX Lift Series
-
Lift Capacity Range: 550 lbs. to 4,400 lbs.
-
Lowered Height: 2.9″ to 4.3″
-
Construction: Heavy-duty steel with captured scissor rollers
-
Safety Features:
-
Electric full-perimeter toe guard
-
24V operator control voltage
-
-
Power Source:
-
External electro-hydraulic power unit
-
Steel braided hydraulic hose
-
Remote push-button control (hand-held)
-
-
Platform Options: Multiple fixed sizes
-
Models Available: 9 standard models
-
Compatibility: Pallet jacks, 4-wheeled carts, rolling equipment
-
Optional Accessories: Approach ramps, foot-operated controls
-
Finish: Durable, corrosion-resistant powder coating
-
Applications: Warehouses, assembly lines, industrial workspaces
- Surcharges: May apply
