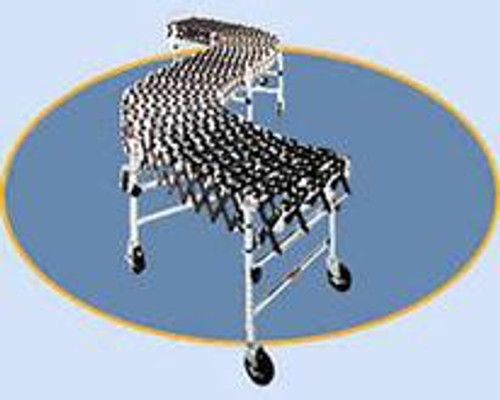

Heavy Duty Accordion Wheel Conveyors Black Plastic Wheels

Heavy Duty Accordion Wheel Conveyors - 18 Inch Widths - Black Plastic Wheels

Manufacturer: Material Flow
$1,580.00
(No reviews yet) Write a Review

FOB: Midwest Warehouse

Flexible conveyors conform to the various shapes necessary for ease of product handling with lengths available up to 60 feet.

Specifications:

  • Black plastic wheels
  • 6 skate wheels/axle
  • Axle centers: 5-1/4"
  • Load capacity: 275 lbs. per lineal ft. when fully extended
  • Double cross braces and double wall inner leg supports
  • 7 gauge side links with black epoxy finish
  • Standard height adjustment: 28" - 36"


Also available with red nylon or steel wheels, contact Material Flow.

Model No. Model No. Length Contracted / Extended at Maximum Leg Sets Per Unit Weight Price Qty
16519 418-08-P 2' 7" - 8' 7" 3 220 lbs.
$1,580.00
16869 418-12-P 3' 8" - 12' 3" 4 270 lbs.
$2,069.00
17207 418-16-P 4' 8" - 15' 11" 5 350 lbs.
$2,585.00
17601 418-20-P 5' 8" - 19' 7" 6 420 lbs.
$3,045.00
18008 418-24-P 6' 8" - 23' 3" 7 470 lbs.
$3,548.00
18204 418-36-P 10' 3" - 35' 4" 10 720 lbs.
$5,183.00
18420 418-40-P 12' 1" - 41' 10" 12 850 lbs.
$6,065.00
18837 418-44-P 13' 1" - 45' 6" 13 910 lbs.
$6,549.00
18869 418-28-P 8' 2" - 28' 0" 8 600 lbs.
$4,291.00
19227 418-32-P 9' 2" - 31' 8" 9 660 lbs.
$4,779.00
19331 418-48-P 14' 4" - 49' 5" 14 1020 lbs.
$7,192.00
19420 418-60-P 17' 5" - 60' 5" 17 1220 lbs.
$8,327.00
19583 418-52-P 15' 4" - 53' 1" 15 1090 lbs.
$7,671.00
20360 418-56-P 16' 5" - 56' 9" 16 1140 lbs.
$8,073.00
!
