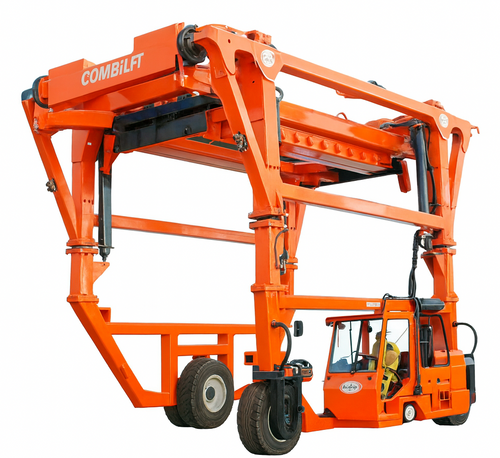

COMBI-SC3 Series Straddle Carriers - Telescopic Toplift

Perfect for Shipping and Logistics.
From Material Flow & Conveyor Systems - 1-800-338-1382

High volume, Straddle carriers for the loading and unloading of containers with telescopic function giving the ability to double stack containers. The Toplift attachment enables the handling of over 12 containers per hour.

Specification

• Capacity: 35,000 kg
• Lift Stroke: 2,200 mm
• Overall Height: 4,925 mm - 6,725 mm
• Overall Width: 4,920 mm
• Loading Area Width: 3,000 mm
• Loading Area Height: 4,360 mm - 6,160 mm

Features

• Highly customizable.
• Low ground pressure when fully loaded
• Easy to service
• Reduced fuel/energy consumption
• Rough terrain & ramp friendly, works on compacted stone, bitumen and light concrete
• Exceptional 3-wheel maneuverability
• No brake maintenance
• Ergonomically designed /driver friendly cab
• Travels in/out of a warehouse with ease
• Same Unit can lift 20’, 30’, 40’, 45’ Containers
• Side Shift Front & Rear
• 360-degree vision when load is lifted
• Soft Solid puncture proof tires
