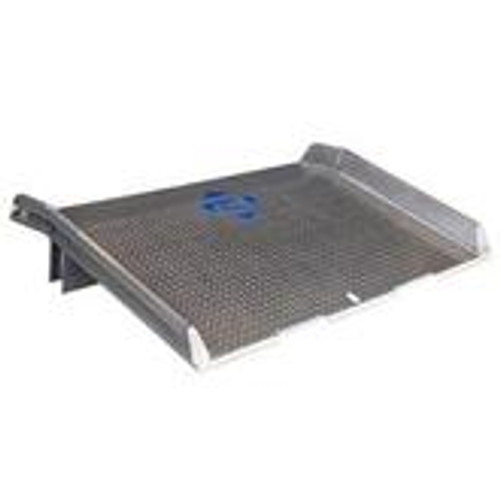

Bluff® Speedy Board® ALUMINUM DOCK BOARD WITH WELDED ALUMINUM CURBS & FORKLIFT TINE NOTCHES
Lightweight Dock Boards offer easier placement and retrieval.
This all-welded aluminum dock board is ideal for low-to-medium volume dock applications using a pallet jack or a forklift. Heavy duty aluminum treadplate dock board features fully welded extruded aluminum curbs and safety restraint legs for maximum corrosion resistance and controlled spark production. Beveled ends offer smooth entry/exit and board includes an 11° bend and an 11" lip on the truck end (customizations are available; call for more information). Each Speedy Board® includes integral Fork Cut-outs for quick, safe placement with a forklift. Comply with OSHA spec. 1910.30(A) and ANSI spec. MH30.2.
NOTE: CAPACITY is the combined weight of your maximum pallet load and lift truck. Capacity is rated for equipment speeds of 3 mph maximum. Stackers and other narrow aisle loaders should not be used on a dock board.
WIDTH should be 12" greater than lift truck or load. Usable width is 6" less than overall width.
** The HT" DIFFERENCE UP is the height difference above the dock.
14% Grade applies to Pallet Trucks and Electric Forklifts. 19% Grade applies to Gas Powered Forklifts.
| Model No. | Model No. | Width | Length | Weight | Capacity | Price | Qty |
|---|---|---|---|---|---|---|---|
| 57151 | 10ATD6030 | 60" | 30" | 105 lbs. | 10,000 lb |
$917.00
$771.99
|
|
| 56649 | 10ATD6036 | 60" | 36" | 107 lbs. | 10,000 lb |
$1,077.00
$958.99
|
|
| 57427 | 10ATD6048 | 60" | 48" | 146 lbs. | 10,000 lb |
$1,419.00
$1,279.00
|
|
| 58165 | 10ATD6060 | 60" | 60" | 181 lbs. | 10,000 lb |
$1,744.00
$1,539.00
|
|
| 57565 | 10ATD6072 | 60" | 72" | 220 lbs. | 10,000 lb |
$2,132.00
$1,803.00
|
|
| 58232 | 10ATD7236 | 72" | 36" | 123 lbs. | 10,000 lb |
$1,354.00
$1,219.00
|
|
| 57632 | 10ATD7248 | 72" | 48" | 168 lbs. | 10,000 lb |
$1,714.00
$1,539.00
|
|
| 58524 | 10ATD7260 | 72" | 60" | 196 lbs. | 10,000 lb |
$2,060.00
$1,839.00
|
|
| 57941 | 15ATD6030 | 60" | 30" | 149 lbs. | 15,000 lb |
$1,145.00
$1,039.00
|
|
| 58805 | 15ATD6036 | 60" | 36" | 151 lbs. | 15,000 lb |
$1,278.00
$1,129.00
|
|
| 58185 | 15ATD6048 | 60" | 48" | 198 lbs. | 15,000 lb |
$1,689.00
$1,529.00
|
|
| 58825 | 15ATD6054 | 60" | 54" | 221 lbs. | 15,000 lb |
$1,898.00
$1,739.00
|
|
| 59487 | 15ATD6060 | 60" | 60" | 243 lbs. | 15,000 lb |
$2,088.00
$1,839.00
|
|
| 58712 | 15ATD6072 | 60" | 72" | 285 lbs. | 15,000 lb |
$2,717.00
$2,448.99
|
|
| 59315 | 15ATD7236 | 72" | 36" | 175 lbs. | 15,000 lb |
$1,522.00
$1,389.00
|
|
| 60055 | 15ATD7248 | 72" | 48" | 228 lbs. | 15,000 lb |
$2,037.00
$1,726.00
|
|
| 59251 | 15ATD7260 | 72" | 60" | 286 lbs. | 15,000 lb |
$2,490.00
$2,109.99
|
