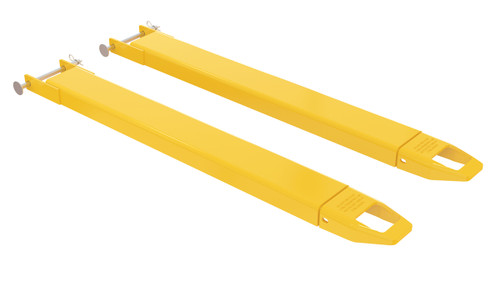

Pin Style Fork Extensions
Manufacturer: Vestil
MSRP:
Was:
Now:
$315.00
(You save
)
- SKU:
- Pin Style Fork Extensions
- UPC:
FOB: Midwest Warehouse
Provide the extra support needed to lift long or large objects with a fork truck.
Vestil Pin Style Fork Extensions offers:
- Welded steel construction with cast steel tips.
- Baked-in powder-coated toughness.
- OSHA regulations require that extensions are no more than 150% of the existing fork length (e.g. 48" existing forks, the fork extension should not exceed 72").
- Maximum uniform capacity is 4,000 lbs. evenly distributed per pair.
Pin Style (suffix P): Remove pin and lay extension over fork or drive fork truck into the extension. Re-insert the pin behind the heel of the fork to secure extension.
Note: Prices below are per pair.
| Model No. | Model No. | Accommodates Fork Width | Fork Extension Inside Width | Length | Maximum Fork Thickness | Weight Per Pair | Price | Qty |
|---|---|---|---|---|---|---|---|---|
| 47459 | FE-4-48-P | 4" | 4-1/2" | 48" | 2" | 75 lbs. |
$305.00
|
|
| 47385 | FE-4-54-P | 4" | 4-1/2" | 54" | 2" | 85 lbs. |
$315.00
|
|
| 47437 | FE-4-63-P | 4" | 4-1/2" | 63" | 2" | 99 lbs. |
$345.00
|
|
| 47501 | FE-4-66-P | 4" | 4-1/2" | 66" | 2" | 101 lbs. |
$375.00
|
|
| 47690 | FE-4-72-P | 4" | 4-1/2" | 72" | 2" | 115 lbs. |
$392.00
|
|
| 47905 | FE-4-84-P | 4" | 4-1/2" | 84" | 2" | 155 lbs. |
$437.00
|
|
| 47703 | FE-4-90-P | 4" | 4-1/2" | 90" | 2" | 167 lbs. |
$456.00
|
|
| 48964 | FE-4-96-P | 4" | 4-1/2" | 96" | 2" | 173 lbs. |
$479.00
|
|
| 48944 | FE-4-108-P | 4" | 4-1/2" | 108" | 2" | 193 lbs. |
$544.00
|
|
| 48759 | FE-4-120-P | 4" | 4-1/2" | 120" | 2" | 220 lbs. |
$553.00
|
|
| 48795 | FE-5-48-P | 5" | 5-1/2" | 48" | 2" | 87 lbs. |
$359.00
|
|
| 48608 | FE-5-54-P | 5" | 5-1/2" | 54" | 2" | 97 lbs. |
$373.00
|
|
| 50114 | FE-5-63-P | 5" | 5-1/2" | 63" | 2" | 111 lbs. |
$399.00
|
|
| 50224 | FE-5-66-P | 5" | 5-1/2" | 66" | 2" | 117 lbs. |
$428.00
|
|
| 50049 | FE-5-72-P | 5" | 5-1/2" | 72" | 2" | 129 lbs. |
$449.00
|
|
| 49786 | FE-5-84-P | 5" | 5-1/2" | 84" | 2" | 161 lbs. |
$489.00
|
|
| 49729 | FE-5-90-P | 5" | 5-1/2" | 90" | 2" | 180 lbs. |
$513.00
|
|
| 51060 | FE-5-96-P | 5" | 5-1/2" | 96" | 2" | 192 lbs. |
$531.00
|
|
| 50927 | FE-5-108-P | 5" | 5-1/2" | 108" | 2" | 216 lbs. |
$596.00
|
|
| 50736 | FE-5-120-P | 5" | 5-1/2" | 120" | 2" | 230 lbs. |
$608.00
|
|
| 50590 | FE-6-48-P | 6" | 6-1/2" | 48" | 2-1/2" | 95 lbs. |
$402.00
|
|
| 52074 | FE-6-54-P | 6" | 6-1/2" | 54" | 2-1/2" | 105 lbs. |
$429.00
|
|
| 51825 | FE-6-63-P | 6" | 6-1/2" | 63" | 2-1/2" | 117 lbs. |
$427.00
|
|
| 51400 | FE-6-66-P | 6" | 6-1/2" | 66" | 2-1/2" | 129 lbs. |
$479.00
|
|
| 51142 | FE-6-72-P | 6" | 6-1/2" | 72" | 2-1/2" | 135 lbs. |
$479.00
|
|
| 52398 | FE-6-84-P | 6" | 6-1/2" | 84" | 2-1/2" | 187 lbs. |
$533.00
|
|
| 52150 | FE-6-90-P | 6" | 6-1/2" | 90" | 2-1/2" | 190 lbs. |
$555.00
|
|
| 51964 | FE-6-108-P | 6" | 6-1/2" | 108" | 2-1/2" | 216 lbs. |
$604.00
|
|
| 51804 | FE-6-120-P | 6" | 6-1/2" | 120" | 2-1/2" | 230 lbs. |
$667.00
|
!
