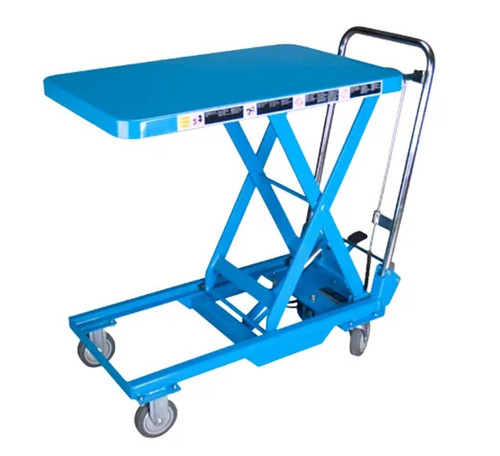

MobiLift BX Series
- SKU:
- MobiLift BX Series
- UPC:
FOB: California Warehouse
MobiLift™ scissor lift tables are rugged industrial lift tables with push-bars and casters. BX Series lift tables provide improved ergonomics by placing the load at a convenient work height while providing the mobility to locate the lift where it is needed. MobiLift™ tables are available in various capacities and travels to satisfy a wide variety of applications. The manual foot pump models have an integrated hydraulic pump/cylinder assembly while a 24-volt DC power unit provides the lifting power on electric battery powered BXB.
The MobiLift™ scissor lift tables add the value of mobility to the hydraulic lift table concept. Exceptional functionality and maneuverability is apparent, whether loaded or empty. In addition, rugged construction and premium-quality hydraulics complement their ease of use with low maintenance.
The MobiLift™ design allows workers to easily move and position loads to a convenient working height. By minimizing undesirable lifting, reaching and stretching, MobiLifts increase productivity and decrease workplace injuries. MobiLift™ tables are used in a wide variety of applications. From stocking shelves in retail stores to lifting and moving materials in libraries, nurseries, machine shops and manufacturing operations, MobiLifts improve productivity.
- Heavy-duty construction with captured scissor rollers for maximum stability.
- Superior hydraulic systems feature an integrated pump-cylinder for maximum reliability.
- High quality casters and wheels for exceptional rollability.
- Foot actuated dual action caster brake locks both the wheel and the swivel.
- Ergonomic push handle with convenient lowering control.
- Lowering control automatically stops when released for added safety.
- Convenient maintenance pins secure the scissor legs for inspection and maintenance.
- Quality baked enamel finish provides exceptional durability and corrosion resistance.
Model No. | Model No. | Description | Travel | Capacity | Platform Height Min./Max. | Platform Size | Overall Size | Weight | Price | Qty |
---|---|---|---|---|---|---|---|---|---|---|
35257 | BX-15 |
Single Scissor Models Num. of Strokes - 15 |
20.4" | 330 lbs. | 8.4" / 28.8" | 17.7W x 27.6L | 17.7"W x 33.6"L x 31.3"H | 75 lbs. |
$950.00
$775.04
|
|
35553 | BX-25 |
Single Scissor Models Num. of Strokes - 25 |
22.7" | 660 lbs. | 11.3" / 34.1" | 19.7W x 32.0L | 19.7"W x 39.7"L x 35.3"H | 200 lbs. |
$1,200.00
$1,075.05
|
|
35953 | BX-50 |
Single Scissor Models Num. of Strokes - 50 |
22.1" | 1100 lbs. | 17.2" / 39.3" | 20.4W x 39.8L | 20.5"W x 46.9"L x 37.8"H | 300 lbs. |
$1,815.00
$1,529.05
|
|
35108 | BX-75 |
Single Scissor Models Num. of Strokes - 67 |
22.1" | 1760 lbs. | 17.2" / 39.3" | 20.4W x 39.8L | 20.5"W x 49.5"L x 37.8"H | 300 lbs. |
$1,947.00
$1,795.05
|
|
35848 | BX-30S |
Double Scissor Models Num. of Strokes - 64 |
45.1" | 660 lbs. | 17.0" / 62.1" | 20.4"W x 39.8"L | 20.5"W x 49.5"L x 37.8"H | 340 lbs. |
$2,310.00
$1,890.05
|
|
36228 | BX-50S |
Double Scissor Models Num. of Strokes - 66 |
23.0" | 1100 lbs. | 16.5" / 39.5" | 18.1"W x 25.6"L | 18.1"W x 37.2"L x 37.0"H | 275 lbs. |
$2,900.00
$2,479.04
|
|
36551 | BX-50W |
Double Scissor Models Num. of Strokes - 90 |
45.1" | 1100 lbs. | 17.0" / 62.1" | 20.4"W x 39.8"L | 20.5"W x 49.5"L x 37.8"H | 380 lbs. |
$3,190.00
$2,799.04
|
|
36936 | BX-30B |
Battery Operated Models Lift Time to Max. Height - 10 sec. |
23.5" | 660 lbs. | 11.5" / 35.0" | 19.7"W x 32.1"L | 19.7"W x 41.7"L x 34.6"H | 280 lbs. |
$3,500.00
$2,859.04
|
|
37170 | BX-50B |
Battery Operated Models Lift Time to Max. Height - 10 sec. |
23.1" | 1100 lbs. | 17.2" / 40.4" | 20.5"W x 39.8"L | 20.4"W x 50.0"L x 37.4"H | 390 lbs. |
$3,800.00
$2,995.04
|
|
37647 | BX-80B |
Battery Operated Models Lift Time to Max. Height - 12 sec. |
21.1" | 1760 lbs. | 17.2" / 38.4" | 20.5"W x 39.8"L | 20.5"W x 49.4"L x 37.4"H | 400 lbs. |
$3,900.00
$3,129.04
|
|
36569 | BX-15WB |
Double Scissor Battery Operated Models Lift Time to Max. Height - 10 sec. |
39.0" | 330 lbs. | 15.2" / 54.1" | 19.7"W x 32.1"L | 19.7"W x 39.7"L x 35.4"H | 330 lbs. |
$3,600.00
$2,939.04
|
|
37333 | BX-30SB |
Double Scissor Battery Operated Models Lift Time to Max. Height - 12 sec. |
46.3" | 660 lbs. | 17.5" / 63.8" | 20.5"W x 39.8"L | 20.4"W x 50.0"L x 37.4"H | 450 lbs. |
$4,200.00
$3,437.04
|
|
37721 | BX-50WB |
Double Scissor Battery Operated Models Lift Time to Max. Height - 17 sec. |
46.1" | 1100 lbs. | 17.1" / 63.2" | 20.5"W x 39.8"L | 20.4"W x 50.0"L x 37.4"H | 490 lbs. |
$5,900.00
$4,929.05
|
