Conveyor and Assembly Trays

Manufacturer: MFG Tray

Volume Discounts Apply

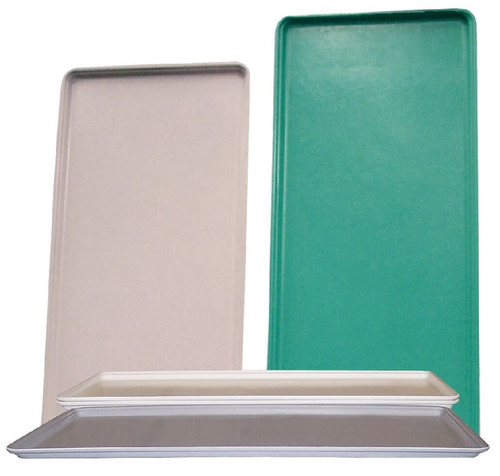

MFG Tray conveyor and assembly trays feature a low-profile design and radial edges to readily accommodate conveyor transport and assembly operations in a wide variety of applications. Four distinct corner profiles are available to integrate with rack systems and conveyors, or for nesting or stacking capabilities. Their dimensional stability and light weight ensure easy transporting and handling.

These trays offer unique solutions to material handling situations with a wide variety of sizes and configurations. Widely used on conveyors and in rack systems, they can withstand the heat as well as the cold of many applications.

Features:

  • Composite construction enables these trays to be constantly used in temperatures ranging from -60° to 250° F (-51° to 121° C) and intermittently in temperatures up to 300° F
  • They are resistant to cutting oils, greases, radiation, mild acids and alkaline solutions within a pH rating of 3.0 – 10.0
  • Will not melt when in contact with most hot objects
  • Excellent dimensional stability and load carrying capacity
  • Available colors: Gray, Green and White
If you need a large quantity of this product, call us at 1-800-338-1382 for additional bulk discounts!
  • Model Info

7 Models Available for Conveyor and Assembly Trays

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Inside Size
L x W x H
Outside Size
L x W x H
Carton Qty Carton Weight Price Ea. Qty
207101 26-7/8" x 21-3/4" x 7/8" 27-7/8" x 22-3/8" x 1" 12 51 lbs $42.01
208101 22-5/8" x 19-3/4" x 7/8" 23-3/8" x 20-1/4" x 1" 12 46 lbs $35.46
209101 23-1/2" x 20-3/4" x 7/8" 24-1/2" x 21-1/2" x 1" 12 48 lbs $39.80
214101 23-1/2" x 22-1/4" x 7/8" 24-1/2" x 23" x 1" 10 40 lbs $44.17
215101 33-1/4" x 20-5/8" x 7/8" 34-1/2" x 21-3/8" x 1" 8 52 lbs $57.65
217101 26" x 19-1/4" x 7/8" 27" x 20" x 1" 12 58 lbs $40.96
218101 21-3/8" x 19-1/4" x 7/8" 22-1/2" x 20" x 1" 15 57 lbs $30.65
