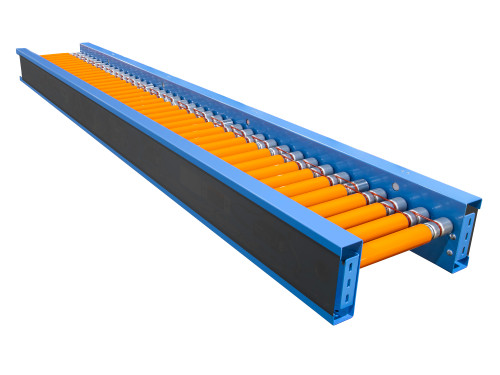

796PRA Powered Roller Zero Pressure Accumulating Conveyor

FOB Our Arkansas Warehouse

Roach's 796PRA Powered Roller Zero Pressure Accumulating Conveyor with rollers set low has revolutionized the automated conveyor industry. Motorized rollers drive the conveyor and eliminate the dependency on drive belts, chains or line shafts.

Specifications:

• Tread Rollers: 1.9" dia. x 16 gauge galvanized, model 196G grooved
• Drive Belt: 3/16" dia., polyurethane belts. Nominal 15 lbs. per roller drive
• Capacity: 15 lbs. per roller or up to 70 lbs. per zone
• Speed: 60 FPM, constant
• Roller Centers: 3"
• Bed: 7" x 1-3/4" x 12 gauge formed steel channel frame. Rollers set low in frame
• Accumulation: Zone singulation operation; 24” zone length; zones are actuated using a photoeye
• Motor Drive: Driven by 24 VDC Powered Roller
• Bearings: Precision ABEC bearings
• DC Power Supply: 24 volt fixed output required
