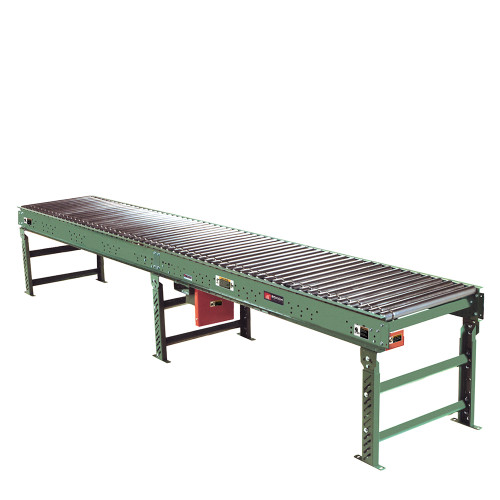

796LS Line Shaft Driven Live Roller Conveyors - 10 Ft Length

FOB: Our Arkansas Warehouse

Conveyor supports pictured are optional and not included in the price!

Maximize conveyor efficiency with the Roach 796LS Line Shaft Driven Live Roller Conveyor from Material Flow. This 10 ft section is engineered for flexibility and reliability, driving curves, spurs, and multiple modules from a single shaft for efficient operation.

Equipped with 1.9" dia. x 16-gauge grooved steel rollers, polyurethane drive belts, and a 1" cold rolled steel drive shaft, this conveyor delivers smooth and consistent performance. The precision ball bearings ensure long service life, while the 1/2 HP Super “E” motor drives the system at a constant 60 FPM speed.

The 7" x 1-1/2" x 12-gauge formed steel channel frame provides strength and stability. Splice plates allow secure connections between bed sections, and optional conveyor supports can be added as needed.

Note: Conveyor supports pictured are optional and not included. Electrical controls are also optional. Surcharges may apply.

• Model: 796LS Line Shaft Driven Live Roller Conveyor

• Length: 10 ft

• Tread Rollers: 1.9" dia. x 16-gauge steel, model 196G grooved

• Drive Belt: 3/16" dia. polyurethane belts (nominal 15 lbs per roller drive)

• Drive Shaft: 1" dia. C1018 cold rolled steel

• Couplings: Types A, B, C, or D available

• Center Drive: Reversible, located approx. 18" from bed end (varies by RC)

• Bearings: Precision ball bearings with composite housings

• Speed: 60 FPM constant

• Bed: 7" x 1-1/2" x 12-gauge formed steel channel

• Motor Drive: 1/2 HP Super “E” motor (230/460/3)

• Roller Chain: No. 50 chain with chain take-up on motor base

• Capacity: Contact Material Flow for more details

• Electrical Controls: Optional

• Supports: Optional, not included

• Surcharges: May apply

All of Roach's pre-engineered line can easily be adapted to special application needs. The basic unit has already been engineered and can often be shipped quickly.
