700BSB Medium Duty Box Style Slider Bed Belt Conveyor - 12" Belt Width

FOB: Midwest Warehouse

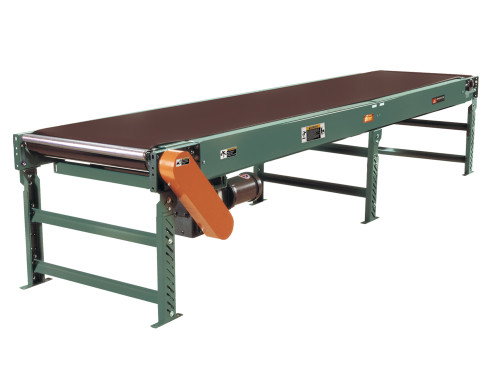

Conveyor supports pictured are optional and not included in the price!

The Roach 700BSB Medium Duty Box Style Slider Bed Belt Conveyor with 12" Belt Width features a box-style slider bed that provides a smooth work surface, perfect for workers stationed beside the conveyor. It is an economical choice for tasks such as packing, testing, and inspecting.

Key Features:

• Smooth Work Surface: Box-style slider bed ideal for efficient packing, testing, and inspecting.
• Durable Belting: Equipped with PVC-120 black belt (CXFS) for reliable performance.
• Robust Drive Pulley: Available in 4" diameter with 1-3/16" diameter shaft or 8" diameter with 1-7/16" diameter shaft, both machine crowned and fully lagged.
• Reliable Tail Pulley: 4" diameter, machine crowned with 1-3/16" diameter shaft.
• One-Direction Operation: End drive allows for single-direction use; optional center drive for reversible operation.
• Safety Pop-Out Rollers: Standard on both ends with 1.9" diameter x 16 gauge steel rollers (model 196G).
• Precise Take-Up: Screw type unit at tail pulley provides 12" belt take-up for optimal tension.
• Sturdy Construction: 7" deep x 12 gauge box-type construction for durability.
• Heavy-Duty Bearings: Precision, lubricated ball bearings with cast iron housings ensure long-lasting use.
• Adjustable Return Rollers: 1.9" diameter x 16 gauge steel rollers (model 196G) for easy adjustment.
• Powerful Motor Drive: Features a 1/2 HP Super "E" motor (230/460/3) for efficient operation.
• Reliable Roller Chain: Drive pulley driven by No. 50 roller chain for smaller drives and No. 60 chain for larger ones. Chain take-up provided on motor base.
• Consistent Belt Speed: Operates at a constant speed of 60 FPM.
• Optional Electrical Controls: Customizable controls to suit specific needs.

Roach's pre-engineered line can be easily adapted for special applications, allowing for quick shipment of the basic unit to meet your requirements.
