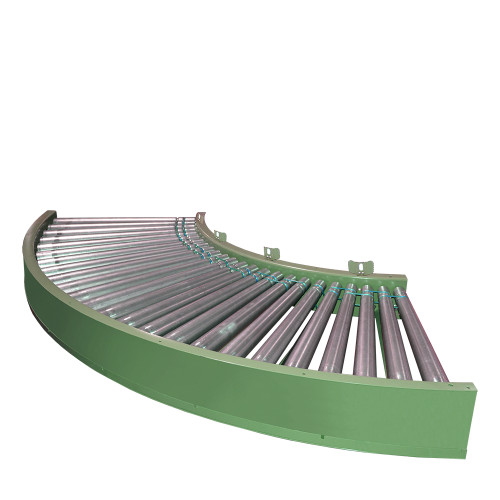

596PRAC Powered Roller Accumulator Curve Photo Eye Controlled

FOB: Midwest Warehouse

Roach's Photo Eye Controlled Powered Roller Accumulators come in 30°, 45°, 60°, and 90° modules for exceptional and safe conveying of products. The Powered Roller Accumulator conveyor has revolutionized the automated conveyor industry. Motorized rollers drive the conveyors eliminating the need for drive belts, chains or line shafts.

Specifications:

• Tread Rollers: 2-1/2" dia. to 1-11/16" dia. x 14 gauge steel tapered rollers, model 254T.
• Drive Belt: 3/16" dia., polyurethane belts. Nominal 15 lbs per roller drive.
• Capacity: 15 lbs. per roller or up to 70 lbs. per zone.
• Speed: 60 FPM, constant.
• Roller Centers: 3"
• Bed: 5" x 1-3/4" x 10 gauge formed steel channel frame. Rollers set high in frame.
• Accumulation: Zone singulation operation; 24" zone length; zones are actuated using a photoeye.
• Motor Drive: Indirect driven by 24V DC powered roller.
• Bearings: Precision ABEC bearings.
• DC Power Supply: 24 volt fixed output required.
