450BOS Box Style Slider Bed Belt Conveyor - 10 Ft Length - 2

450BOS-12-10

FOB: Our Arkansas Warehouse

Conveyor supports pictured are optional and not included in the price!

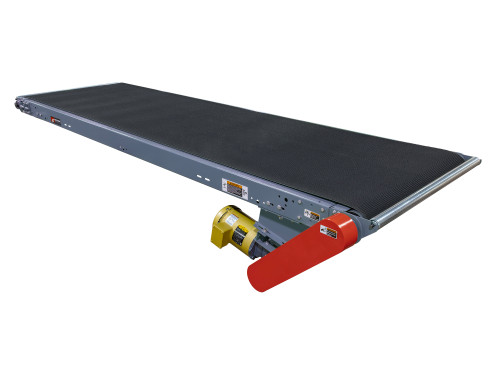

The Roach 450BOS Box-Style Slider Bed Belt Conveyor is a versatile and reliable solution for efficiently transporting goods in various industrial settings, including packing, testing, inspecting, and assembly lines. This conveyor's box-style slider bed design makes it especially ideal for operations where workers are stationed alongside the conveyor, providing a stable and smooth working surface.

• Durable Belt System: The 450BOS is equipped with a strong PVC-120 black belt that ensures consistent performance and longevity, even under continuous operation.
• Reliable Drive Mechanism: Features a drive pulley with either a 4-inch or 8-inch diameter shaft, fully crowned and lagged, providing dependable power and smooth belt movement.
• Precision Bearings: All pulley bearings are heavy-duty, precision-lubricated, and housed in robust cast iron, guaranteeing a long service life.
• Adjustable Rollers: Includes 1.9-inch diameter, 16-gauge steel return rollers that are adjustable, allowing for fine-tuning to meet specific operational needs.
• Consistent Belt Speed: Operates at a constant belt speed of 60 feet per minute (FPM), ideal for maintaining a steady flow of goods along the production line.
• Sturdy Construction: Built with a 4.5-inch by 12-gauge channel frame, this conveyor is designed for durability and stability, with optional floor supports available for added strength.
• Safety Features: Comes standard with safety pop-out rollers, which mount into a slot on the bracket to eliminate dangerous pinch points, ensuring a safer working environment.
• Flexible Motor Drive Options: Powered by a 1/3 HP right-angle gear motor, compatible with 230/460V, 3-phase power, making it adaptable to various industrial settings.

Customization Options:

• Optional Center Drive: For operations requiring reversible belt movement, an optional center drive can be added to accommodate different workflow requirements.
• Tailored Controls: Electrical controls are available as an option, allowing for customized conveyor operation to suit specific needs.

The Roach 450BOS is a top choice for industries seeking a reliable, durable, and efficient conveyor solution that enhances productivity while providing a safe working environment. Perfect for a wide range of applications, this conveyor is built to meet the demands of any modern industrial operation.

• Manufacturer: Roach Conveyors
• Model: 450BOS
• Type: Box Style Slider Bed Belt Conveyor
• Length: 10 Ft.
• Frame Style: Box Style
• Application: Material Handling, Assembly Lines, Warehouses
• Material: Heavy-duty Steel Frame
• Belt Type: Slider Bed
• Surcharges May Apply
