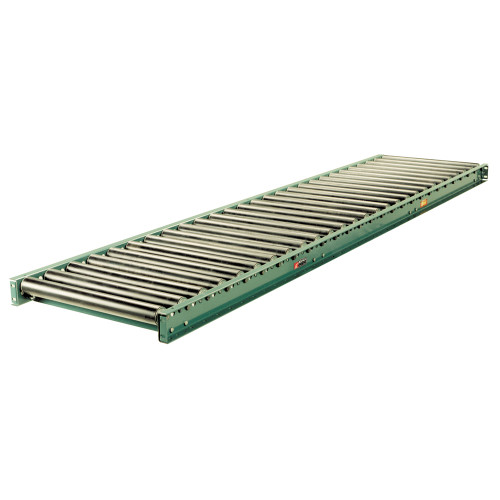

251S Heavy Duty 2.5" x 11 Ga. Steel Gravity Roller Conveyors 22 inch Roller Length

251S Heavy Duty 2.5" x 11 Ga. Steel Gravity Roller Conveyors 22" Roller Length - 23" Between Frame

Manufacturer: Roach Conveyors
$584.99
(No reviews yet) Write a Review

FOB: Midwest warehouse

Specifications:

  • Rollers: 2-1/2" x 11 gauge steel tubing, model 251S.
  • Roller Capacity: 540 lbs. per roller.
  • Bearings: Plain ball bearings, zinc plated, grease packed.
  • Frames: Formed steel painted channel 4" x 1-1/2" x 7 gauge set high; 5" x 1-1/2" x 7 gauge set low.
  • Frame Capacity: 3400 lbs. maximum distributed live load per 10' section with supports at 10' centers; 7500 lbs. at 5' centers.
  • Couplings: Butt type.
  • Axles: 11/16" hex shaft, spring loaded.

Optional special lengths, widths and height settings available

WARNING: To prevent pinch points that exist when gravity conveyors are permanently attached to power conveyors, use connector brackets with safety pop-out rollers.

All of Roach's pre-engineered line can easily be adapted to special application needs. The basic unit has already been engineered and can often be shipped quickly.

Model No. Model No. Nominal Roller Length Between Frames Roller Centers Length Weight Price Qty
43438 251S-23-3-H-10 22" 23" 3" 10' 483 lbs.
$1,561.90
43631 251S-23-45-H-10 22" 23" 4-1/2" 10' 355 lbs.
$1,185.29
43877 251S-23-6-H-10 22" 23" 6" 10' 292 lbs.
$874.59
44464 251S-23-12-H-10 22" 23" 12" 10' 196 lbs.
$584.99
45489 251S-23-9-H-10 22" 23" 9" 10' 228 lbs.
$714.09
!
