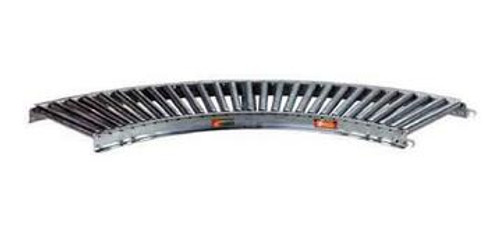

138G Steel Gravity Roller Conveyor 45 Degree Curved Section

FOB Arkansas

Specifications:

• Rollers: 1-3/8" dia. x 18 gauge tubing available in galvanized steel. Roller capacity is 50 lbs.
• Axles: 1/4" dia. galvanized steel shaft, spring loaded.
• Frames: Formed galvanized steel channel 2-1/2" x 1" x 12 gauge.
• Couplings: Hook and rod; hooks on one end and rod ("stud") other end.
• Bearings: Integral plain ball bearings, zinc plated, oiled.
• Frame Capacity: Galvanized steel 350 lbs. max. distributed live load per 10' section, or 1300 lbs. per 5' section.

Note: Prices in table below are set high. In addition to selecting your conveyor below, select "Set Low" option in Options tab below to order set low frames.
