Heavy Duty Roller Conveyor

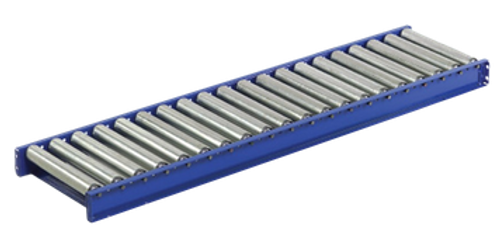

1.9 Inch Medium Heavy Duty Roller Conveyors - 5 Ft. Length

Manufacturer: Roll-A-Way
$275.05
(No reviews yet) Write a Review

FOB Shipping Point

Roll-A-Way's 190-SRM 1.9" Inch Medium/Heavy Duty Roller Conveyors are made for permanent industrial usage. All-welded construction creates a durable conveyor.

  • Rollers: 1.9" 16 gauge galvanized steel
  • Axles: 7/16" Hex, Spring loaded
  • Frame: 3-1/2" x 1" x 1". 10 Ga. Powder Coated Blue Steel Formed Channel
  • Welded Cross Braces
  • Butt Couplers Standard
  • 5' Frame Capacity: 500 lbs/ft
  • Roller Cap. - 250 lbs.

Steel surcharge may apply.



Model No. Model No. Length Overall Width Roller Center Weight Price Qty
58853 190-SRM-0312-5 5' 12" 3" 80 lbs
$298.00
$275.05
59614 190-SRM-0318-5 5' 18" 3" 90 lbs
$374.05
58840 190-SRM-0324-5 5' 24" 3" 115 lbs
$407.05
59381 190-SRM-0330-5 5' 30" 3" 144 lbs
$450.00
$445.05
60237 190-SRM-0336-5 5' 36" 3" 168 lbs
$504.00
$499.05
59352 190-SRM-4512-5 5' 12" 4-1/2" 70 lbs
$246.00
$227.04
60174 190-SRM-4518-5 5' 18" 4-1/2" 85 lbs
$295.05
60772 190-SRM-4524-5 5' 24" 4-1/2" 95 lbs
$312.00
$289.05
59770 190-SRM-4530-5 5' 30" 4-1/2" 110 lbs
$353.00
$326.05
60170 190-SRM-4536-5 5' 36" 4-1/2" 126 lbs
$382.00
$353.05
!
