E-Z Reach Lift and Tilt Container Tilter
Manufacturer: Southworth
MSRP:
Was:
Now:
$13,990.00
(You save
)
- SKU:
- E-Z Reach Lift and Tilt Container Tilter
- UPC:
FOB: Midwest warehouse

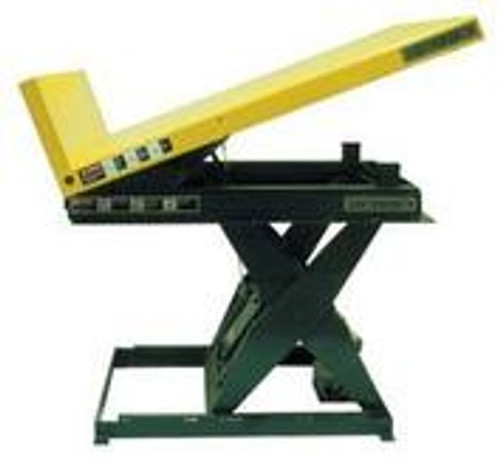

To precisely position containers with independent control of lift and tilt, E-Z Reach Lift and Tilt is ideal. With its exclusive Universal Tilter Base (UTB) it compensates for the shifting center of gravity as the load is tilted. The open frame top allows the tilting hydraulics to retract within the frame resulting in a lower profile when in the full down position. The UTB also combines a shorter but wider stance for improved stability in a minimum footprint.
Notes:
- Standard primary voltage is 115/1/60.
- Oversized platform sizes (-OS models in table below) are available in 6" increments. Call Material Flow for details.
| Model No. | Model No. | Platform Size | Capacity | Height Range | Degree of Tilt | Weight | Price | Qty |
|---|---|---|---|---|---|---|---|---|
| 25933 | UTB1-30 | 42" x 42" | 1000 lbs. | 11" to 39" | 30 degrees | 1300 lbs. |
$13,990.00
|
|
| 26668 | UTB1-30-OS | Up to 66" x 72" | 1000 lbs. | 11" to 39" | 30 degrees | 1300 lbs. |
$14,845.00
|
|
| 27230 | UTB2-30 | 42" x 42" | 2000 lbs. | 11" to 39" | 30 degrees | 1300 lbs. |
$14,249.00
|
|
| 27648 | UTB2-30-OS | Up to 66" x 72" | 2000 lbs. | 11" to 39" | 30 degrees | 1300 lbs. |
$15,090.00
|
|
| 27940 | UTB4-30 | 42" x 42" | 4000 lbs. | 11" to 39" | 30 degrees | 1300 lbs. |
$16,285.00
|
|
| 28280 | UTB4-30-OS | Up to 66" x 54" | 4000 lbs. | 11" to 39" | 30 degrees | 1300 lbs. |
$17,068.00
|
|
| 27150 | UTB1-45 | 42" x 42" | 1000 lbs. | 11" to 39" | 45 degrees | 1300 lbs. |
$14,070.00
|
|
| 27593 | UTB1-45-OS | Up to 66" x 72" | 1000 lbs. | 11" to 39" | 45 degrees | 1300 lbs. |
$15,019.00
|
|
| 27999 | UTB2-45 | 42" x 42" | 2000 lbs. | 11" to 39" | 45 degrees | 1300 lbs. |
$14,410.00
|
|
| 28804 | UTB2-45-OS | Up to 66" x 72" | 2000 lbs. | 11" to 39" | 45 degrees | 1300 lbs. |
$15,250.00
|
|
| 29213 | UTB4-45 | 42" x 42" | 4000 lbs. | 11" to 39" | 45 degrees | 1300 lbs. |
$16,285.00
|
|
| 29533 | UTB4-45-OS | Up to 66" x 54" | 4000 lbs. | 11" to 39" | 45 degrees | 1300 lbs. |
$17,219.00
|
!
