Series 4000 Standard Heavy Duty Cantilever Rack - Single Sided Upright - Columns Only

Manufacturer: Meco Omaha

FOB - Midwest Warehouse
Standard Color Gray


MADE IN THE USA

Meco Omaha Series 4000 Standard Heavy Duty Cantilever Racks - Single Sided Uprights are designed for use where heavier capacities are not required. Available in 8', 10', 12', 14', 15', 16', 18', and 20' single sided uprights with a choice of 9 brace lengths (measured on center) to accommodate 12", 18", 24", 30", 36", 42", 48", 54", and 60" straight arms. Arms are completely adjustable on 3" centers up and down the full length of the uprights. Two or more uprights can be assembled in a continuous system.

The model numbers below are just the Uprights and the Bases. The tables below show what length arms can be purchased with the unit. Brace sets, Straight Arms and Inclined Arms are found in the "Options" tab

Features:

  • Preserves valuable floor space.
  • Can be specifically designed to meet your specific needs and requirements for your application.
  • This sturdy and stable rack is as convenient and versatile as the heavier duty racks but priced lower to reflect the reduced capacity. Installation is quick and easy. Racks can be tailored to your individual requirements. Open base design affords easy forklift accessibility. Ideal for storing bar stock, pipe, tubing, lumber and many lightweight or hart-to-stock items that must be kept off the floor.
  • Model Info

31 Models for Series 4000 Standard Heavy Duty Cantilever Rack - Single Sided Upright - Columns Only

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Height of Upright Length of Base Length of Arm Available
To Be Purchased for Unit
Weight Capacity Price Ea. Qty
U831 8' 31" 12" or
18"
237 lbs. 28600 lbs.
24700 lbs.
Call
U837 8' 37" 24" 245 lbs. 21500 lbs. Call
U849 8' 49" 30" 263 lbs. 18300 lbs. Call
U861 8' 61" 42" 281 lbs. 14200 lbs. Call
U874 8' 74" 54" or
60"
299 lbs. 11600 lbs.
10700 lbs.
Call
U1031 10' 31" 12" or
18"
275 lbs. 28500 lbs.
24600 lbs.
Call
U1037 10' 37" 24" 283 lbs. 21300 lbs. Call
U1049 10' 49" 30" 301 lbs. 18200 lbs. Call
U1061 10' 61" 42" 319 lbs. 14100 lbs. Call
U1074 10' 74" 54" or
60"
337 lbs. 11500 lbs.
10600 lbs.
Call
U1231 12' 31" 12" or
18"
311 lbs. 28200 lbs.
24400 lbs.
Call
U1237 12' 37" 24" 319 lbs. 20900 lbs. Call
U1249 12' 49" 30" 337 lbs. 17800 lbs. Call
U1261 12' 61" 42" 355 lbs. 13900 lbs. Call
U1274 12' 74" 54" or
60"
373 lbs. 11400 lbs.
10500 lbs.
Call
U1437 14' 37" 12" or
18"
358 lbs. 27400 lbs.
23400 lbs.
Call
U1461 14' 61" 42" 393 lbs. 13700 lbs. Call
U1474 14' 74" 54" or
60"
411 lbs. 11300 lbs.
10400 lbs.
Call
U1537 15' 37" 12" or
18"
378 lbs. 27100 lbs.
22600 lbs.
Call
U1549 15' 49" 30" 395 lbs. 16900 lbs. Call
U1561 15' 61" 42" 413 lbs. 13600 lbs. Call
U1574 15' 74" 54" or
60"
431 lbs. 11200 lbs.
10300 lbs.
Call
U1637 16' 37" 12" or
18"
396 lbs. 23700 lbs.
20300 lbs.
Call
U1649 16' 49" 30" 413 lbs. 15300 lbs. Call
U1661 16' 61" 42" 431 lbs. 12900 lbs. Call
U1674 16' 74" 54" or
60"
449 lbs. 11100 lbs.
10300 lbs.
Call
U1849 18' 49" 12" or
18"
449 lbs. 22200 lbs.
19200 lbs.
Call
U1861 18' 61" 42" 466 lbs. 12700 lbs. Call
U2049 20' 49" 12" or
18"
484 lbs. 20600 lbs.
17800 lbs.
Call
U2061 20' 61" 42" 501 lbs. 11900 lbs. Call
U2074 20' 74" 54" or
60"
520 lbs. 10500 lbs.
9800 lbs.
Call
All items in RED ship express from our warehouses.

4 Options Available for Series 4000 Standard Heavy Duty Cantilever Rack - Single Sided Upright - Columns Only

Series 4000 Standard Heavy Duty Cantilever Rack - Single Sided Upright - Columns Only Option Image

Standard Straight Arms Only

ARMS can be used on SERIES 3000, SERIES 4000 or SERIES 5000 uprights only. Capacities are based on an evenly distributed load. Note that arm lips are not intended to bear any portion of the load.

Straight Arms through 48" long have a minimum pitch of 3/8" per foot to compensate for deflection. 54" and 60" arms have a minimum pitch of 5/8" per foot.

Model No. Description Length Capacity Weight Price Ea. Qty
SA12 Standard Straight Arms without Lip 12" 3000 lbs. 9 lbs. Call
SA18 Standard Straight Arms without Lip 18" 2500 lbs. 11 lbs. Call
SA24 Standard Straight Arms without Lip 24" 2000 lbs. 13 lbs. Call
SA30 Standard Straight Arms without Lip 30" 1500 lbs. 15 lbs. Call
SA36 Standard Straight Arms without Lip 36" 1200 lbs. 17 lbs. Call
SA42 Standard Straight Arms without Lip 42" 1100 lbs. 19 lbs. Call
SA48 Standard Straight Arms without Lip 48" 1000 lbs. 21 lbs. Call
SA54 Standard Straight Arms without Lip 54" 800 lbs. 24 lbs. Call
SA60 Standard Straight Arms without Lip 60" 600 lbs. 26 lbs. Call
SA12L Standard Straight Arms with Lip 12" 3000 lbs. 9 lbs. Call
SA18L Standard Straight Arms with Lip 18" 2500 lbs. 11 lbs. Call
SA24L Standard Straight Arms with Lip 24" 2000 lbs. 13 lbs. Call
SA30L Standard Straight Arms with Lip 30" 1500 lbs. 15 lbs. Call
SA36L Standard Straight Arms with Lip 36" 1200 lbs. 17 lbs. Call
SA42L Standard Straight Arms with Lip 42" 1100 lbs. 19 lbs. Call
SA48L Standard Straight Arms with Lip 48" 1000 lbs. 21 lbs. Call
SA54L Standard Straight Arms with Lip 54" 800 lbs. 24 lbs. Call
SA60L Standard Straight Arms with Lip 60" 600 lbs. 26 lbs. Call
All items in RED ship express from our warehouses.

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Series 4000 Standard Heavy Duty Cantilever Rack - Single Sided Upright - Columns Only Option Image

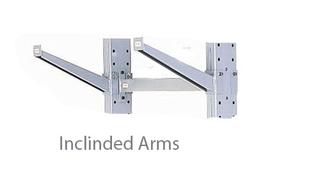

Standard Inclined Arms Only

ARMS can be used on SERIES 3000, SERIES 4000 or SERIES 5000 uprights only. Capacities are based on an evenly distributed load. Note that arm lips are not intended to bear any portion of the load.

INCLINED ARMS have a pitch of 20° degrees or approximately 4.36" per foot.

Model No. Description Length Capacity Weight Price Ea. Qty
IA12 Standard Inclined Arms without Lip 12" 3000 lbs. 9 lbs. Call
IA18 Standard Inclined Arms without Lip 18" 2500 lbs. 11 lbs. Call
IA24 Standard Inclined Arms without Lip 24" 2000 lbs. 13 lbs. Call
IA30 Standard Inclined Arms without Lip 30" 1500 lbs. 15 lbs. Call
IA36 Standard Inclined Arms without Lip 36" 1200 lbs. 17 lbs. Call
IA42 Standard Inclined Arms without Lip 42" 1100 lbs. 22 lbs. Call
IA48 Standard Inclined Arms without Lip 48" 1000 lbs. 23 lbs. Call
IA12L Standard Inclined Arms with Lip 12" 3000 lbs. 9 lbs. Call
IA18L Standard Inclined Arms with Lip 18" 2500 lbs. 11 lbs. Call
IA24L Standard Inclined Arms with Lip 24" 2000 lbs. 13 lbs. Call
IA30L Standard Inclined Arms with Lip 30" 1500 lbs. 15 lbs. Call
IA36L Standard Inclined Arms with Lip 36" 1200 lbs. 17 lbs. Call
IA42L Standard Inclined Arms with Lip 42" 1100 lbs. 22 lbs. Call
IA48L Standard Inclined Arms with Lip 48" 1000 lbs. 23 lbs. Call
All items in RED ship express from our warehouses.

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Series 4000 Standard Heavy Duty Cantilever Rack - Single Sided Upright - Columns Only Option Image

Cantilever Brace Sets Only

All braces can be used on SERIES 3000, SERIES 4000 or SERIES 5000 uprights only.

Length of braces is measured from center of upright to center of upright.

All weights include hardware.


Model No. Description Length Weight Price per Pair Qty
2B24 For 8' Uprights Set of Two 24" 21 lbs Call
2B36 For 8' Uprights Set of Two 36" 28 lbs Call
2B42 For 8' Uprights Set of Two 42" 31 lbs Call
2B48 For 8' Uprights Set of Two 48" 35 lbs Call
2B60 For 8' Uprights Set of Two 60" 42 lbs Call
2B72 For 8' Uprights Set of Two 72" 49 lbs Call
2B84 For 8' Uprights Set of Two 84" 56 lbs Call
2B96 For 8' Uprights Set of Two 96" 63 lbs Call
2B120 For 8' Uprights Set of Two 120" 113 lbs Call
3B24 For 10' - 14' Uprights Set of Three 24" 31 lbs Call
3B36 For 10' - 14' Uprights Set of Three 36" 41 lbs Call
3B42 For 10' - 14' Uprights Set of Three 42" 47 lbs Call
3B48 For 10' - 14' Uprights Set of Three 48" 52 lbs Call
3B60 For 10' - 14' Uprights Set of Three 60" 62 lbs Call
3B72 For 10' - 14' Uprights Set of Three 72" 73 lbs Call
3B84 For 10' - 14' Uprights Set of Three 84" 83 lbs Call
3B96 For 10' - 14' Uprights Set of Three 96" 94 lbs Call
3B120 For 10' - 14' Uprights Set of Three 120" 170 lbs Call
4B24X For 15' - 20' Uprights Set of Four Including X-Bracing 24" 66 lbs Call
4B36X For 15' - 20' Uprights Set of Four Including X-Bracing 36" 81 lbs Call
4B42X For 15' - 20' Uprights Set of Four Including X-Bracing 42" 90 lbs Call
4B48X For 15' - 20' Uprights Set of Four Including X-Bracing 48" 97 lbs Call
4B60X For 15' - 20' Uprights Set of Four Including X-Bracing 60" 113 lbs Call
4B72X For 15' - 20' Uprights Set of Four Including X-Bracing 72" 130 lbs Call
4B84X For 15' - 20' Uprights Set of Four Including X-Bracing 84" 147 lbs Call
4B96XX For 15' - 20' Uprights Set of Four Including X-Bracing 96" 182 lbs Call
4B120XX For 15' - 20' Uprights Set of Four Including X-Bracing 120" 283 lbs Call
All items in RED ship express from our warehouses.

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Series 4000 Standard Heavy Duty Cantilever Rack - Single Sided Upright - Columns Only Option Image

Heavy Duty and Extra Heavy Duty Straight Arms Only

Heavy Duty and Extra Heavy Duty Straight Arms can be used on SERIES 3000, SERIES 4000 or SERIES 5000 uprights only. Capacities are based on an evenly distributed load. Note that arm lips are not intendeded to bear any portion of the load.

Model No. Description Length Capacity Weight Price Ea. Qty
HDSA36 Without Lip 36" 2175 lbs 28 lbs Call
XHDSA36 Without Lip 36" 3400 lbs 34 lbs Call
HDSA42 Without Lip 42" 1865 lbs 31 lbs Call
XHDSA42 Without Lip 42" 2900 lbs 37 lbs Call
HDSA48 Without Lip 48" 1630 lbs 34 lbs Call
HDSA482M Without Lip 48" 2000 lbs 36 lbs Call
XHDSA48 Without Lip 48" 2500 lbs 40 lbs Call
XHDSA483M Without Lip 48" 3000 lbs 39 lbs Call
XHDSA484M Without Lip 48" 4000 lbs 51 lbs Call
HDSA54 Without Lip 54" 1440 lbs 38 lbs Call
XHDSA54 Without Lip 54" 2000 lbs 44 lbs Call
HDSA60 Without Lip 60" 1300 lbs 42 lbs Call
XHDSA60 Without Lip 60" 1650 lbs 46 lbs Call
XHDSA602M Without Lip 60" 2000 lbs 61 lbs Call
HDSA36L With Lip 36" 2175 lbs 28 lbs Call
XHDSA36L With Lip 36" 3400 lbs 34 lbs Call
HDSA42L With Lip 42" 1865 lbs 31 lbs Call
XHDSA42L With Lip 42" 2900 lbs 37 lbs Call
HDSA48L With Lip 48" 1630 lbs 34 lbs Call
HDSA48L2M With Lip 48" 2000 lbs 36 lbs Call
XHDSA48L With Lip 48" 2500 lbs 40 lbs Call
XHDSA48L3M With Lip 48" 3000 lbs 39 lbs Call
XHDSA48L4M With Lip 48" 4000 lbs 51 lbs Call
HDSA54L With Lip 54" 1440 lbs 38 lbs Call
XHDSA54L With Lip 54" 2000 lbs 44 lbs Call
HDSA60L With Lip 60" 1300 lbs 42 lbs Call
XHDSA60L With Lip 60" 1650 lbs 46 lbs Call
XHDSA60L2M With Lip 60" 2000 lbs 61 lbs Call
All items in RED ship express from our warehouses.

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.
