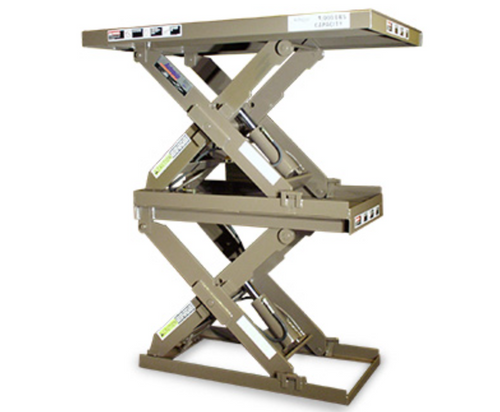

Series 35 Double High Scissor Lift Tables
Manufacturer: Autoquip
MSRP:
Was:
Now:
Quote For Price
(You save
)
- SKU:
- Series 35 Double High Scissor Lift Tables
- UPC:
Advantages
- Reduces worker fatigue and greatly reduce the risk of serious back injuries to workers
- Brings the work to the worker and increase a factory’s productivity
- Include 28 popular-sized models which can be used in a wide variety of lifting applications
- 1,500 to 5,400 lbs. capacities
- 24" to 96" travel
Features
- DU lubricated-for-life bearings on all pivot points
- Solid steel legs with stiffener bars
- Turned, ground, polished and hard-chromed axle pins
- Double-wire braided hydraulic hoses
- Polyethylene reservoir
- Maintenance (safety) locks in base-frame
- Factory tested to 110% of capacity
- Velocity fuses on cylinders
- Internally and remote mounted power unit available
- Pre-wired power unit with UL approved and labeled controls
- Built and designed in accordance with ANSI MH29.1
Benefits
- Maintenance free bearings, no greasing
- Extended bearing life
- Extended hose life for added safety
- Controlled descent in case of severed hose — Safety first!
- Minimal platform deflection
- Reservoir will not contain rust, weld slag or condensation apparent with metal tanks. Allows visual checking of oil level
- Easy access to hydraulic/electrical components for servicing
- Ready to operate lift with zero plumbing and minimal wiring with internal power unit
- Backed by the best warranty in the industry
Model No. | Model No. | Capacity | Weight | Lowered Height | Raised Height | Price | Qty |
---|---|---|---|---|---|---|---|
54801 | H24S25DH | 2000 lbs. | 1100 lbs. | 13" | 61" |
|
|
54944 | H24S40DH | 3400 lbs. | 1150 lbs. | 13" | 61" |
|
|
54510 | H24S60DH | 5400 lbs. | 1200 lbs. | 13" | 61" |
|
|
55545 | H24S80DH | 7000 lbs. | 1275 lbs. | 14" | 62" |
|
|
55200 | H36S25DH | 1900 lbs. | 1300 lbs. | 13" | 85" |
|
|
54782 | H36S40DH | 3400 lbs. | 1350 lbs. | 13 | 85" |
|
|
56140 | H36S60DH | 5400 lbs. | 1400 lbs. | 13" | 85" |
|
|
55681 | H36S80DH | 7000 lbs. | 1475 lbs. | 14" | 86" |
|
|
56636 | H48S25DH | 1700 lbs. | 1700 lbs. | 14" | 110" |
|
|
56113 | H48S40DH | 3200 lbs. | 1750 lbs. | 14" | 110" |
|
|
57030 | H48S60DH | 5200 lbs. | 1800 lbs. | 14" | 110" |
|
|
56365 | H48S80DH | 7000 lbs. | 1875 lbs. | 15" | 111" |
|
|
56160 | H58S120DH | 7400 lbs. | 9200 lbs. | 25" | 141" |
|
|
56952 | H58S150DH | 10300 lbs. | 9400 lbs. | 25" | 141" |
|
|
56707 | H60S25DH | 1400 lbs. | 2200 lbs. | 16" | 136" |
|
|
57521 | H60S40DH | 2800 lbs. | 2300 lbs. | 16" | 136" |
|
|
56778 | H60S80DH | 4000 lbs. | 8800 lbs. | 24" | 144" |
|
|
57509 | H60S60DH | 4700 lbs. | 2400 lbs. | 16" | 136" |
|
|
58389 | H60S100DH | 5500 lbs. | 9000 lbs. | 24" | 144" |
|
!
