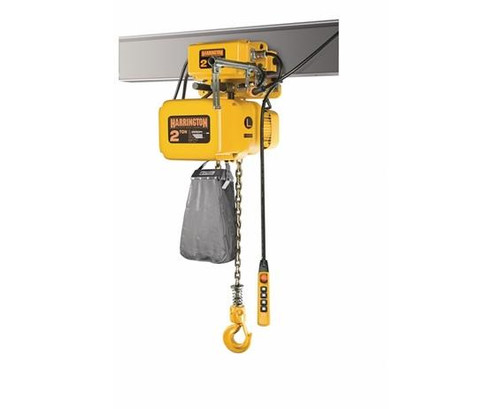

High Capacity Electric Hoist With Motorized Trolley

High Production Electric Hoist With Motorized Trolley

Manufacturer: Harrington Hoists
$7,277.29
(No reviews yet) Write a Review

FOB: East Warehouse

  • Solve heavy duty material handling needs with precision.
  • Rugged electric chain hoist mounts in top hook or motorized trolley units.
  • Lifting Speed Code Letters: S=Standard, C=Common.
  • Trolley Speed Code Letters: S=Standard, L=Low.
  • Nickel-Plated load chain for durability.

60 minute rated motors are fan cooled and completely sealed for performance and longevity. Equipped with "The Guardian" Smart Break Technology, a DC current driven electromagnetic brake does not release unless the motor is energized. Also included is an independent operating mechanical load brake. Certified and listed to UL 1340 "Standard for Hoists." Standard electronic "count hour" meter records motor starts and running time, aiding preventative maintenance and trouble-shooting. Nickel plated load chain for durability and corrosive resistance. 40 or 80 FPM trolley speed (specify). Includes electric trolley brake and 30' power cord. 208-230/460/3/60. Longer lifts and two-speed via under-the-cover Variable Frequency Drive models available. Call for details and prices on hook mount units and push/pull, or geared trolls units.

Model No. Model No. Capacity Std. Lift Lift Speed Pendant Cord Length (ft.) Min. Headroom Trolley Speed Weight Lifting Speed Price Qty
55781 NERM010L-L 1 ton 10' 14 fpm 8.2' 17.1" Low 40 FPM 170 lbs Low
$7,277.29
55480 NERM010S-L 1 ton 10' 28 fpm 8.2' 17.1" Low 40 FPM 185 lbs Standard
$8,691.73
56380 NERM015S-L 1-1/2 ton 10' 18 fpm 8.2' 19.9" Low 40 FPM 243 lbs Standard
$9,988.82
55902 NERM020C-L 2 ton 10' 7 fpm 8.2' 27.2" Low 40 FPM 214 lbs Common
$8,332.25
56749 NERM020L-L 2 ton 10' 14 fpm 8.2' 22.4" Low 40 FPM 245 lbs Low
$9,163.62
56193 NERM020S-L 2 ton 10' 28 fpm 8.2' 23" Low 40 FPM 284 lbs Standard
$11,293.33
55724 NERM025S-L 2-1/2 ton 10' 22 fpm 8.2' 24.4" Low 40 FPM 333 lbs Standard
$12,092.58
56567 NERM030C-L 3 ton 10' 17 fpm 9.2' 32.9" Low 40 FPM 340 lbs Common
$11,350.14
56125 NERM050L-L 5 ton 10' 11 fpm 9.2' 33.1" Low 40 FPM 443 lbs Low
$15,511.94
57094 NERM010L-S 1 ton 10' 14 fpm 8.2' 17.1" Standard 80 FPM 170 lbs Low
$7,277.29
57935 NERM010S-S 1 ton 10' 28 fpm 8.2' 17.1" Standard 80 FPM 185 lbs Standard
$8,691.73
57256 NERM015S-S 1-1/2 ton 10' 18 fpm 8.2' 19.9" Standard 80 FPM 243 lbs Standard
$9,988.82
57886 NERM020C-S 2 ton 10' 7 fpm 8.2' 27.2" Standard 80 FPM 214 lbs Common
$8,332.25
57344 NERM020L-S 2 ton 10' 14 fpm 8.2' 22.4" Standard 80 FPM 245 lbs Low
$9,163.33
58019 NERM020S-S 2 ton 10' 28 fpm 8.2' 23" Standard 80 FPM 284 lbs Standard
$11,293.33
57494 NERM025S-S 2-1/2 ton 10' 22 fpm 8.2' 24.4" Standard 80 FPM 333 lbs Standard
$12,092.58
58181 NERM030C-S 3 ton 10' 17 fpm 9.2' 32.9" Standard 80 FPM 340 lbs Common
$11,350.14
57702 NERM050L-S 5 ton 10' 11 fpm 9.2' 33.1" Standard 80 FPM 443 lbs Low
$15,511.94
58560 NERM080S-L 8 ton 10' 7.5 fpm 10.8' 45.9" Low 40 FPM 624 lbs Standard
$19,471.15
59348 NERM100L-L 10 ton 10' 5.5 fpm 10.8' 46.5" Low 40 FPM 833 lbs Low
$23,206.76
58577 NERM100S-L 10 ton 10' 11 fpm 10.8' 46.5" Low 40 FPM 880 lbs Standard
$27,311.73
59150 NERM150S-L 15 ton 10' 7.5 fpm 10.8' 51.6" Low 40 FPM 1482 lbs Standard
$37,153.55
59964 NERM200S-L 20 ton 10' 5.5 fpm 10.8' 53" Low 40 FPM 1479 lbs Standard
$42,696.46
!
