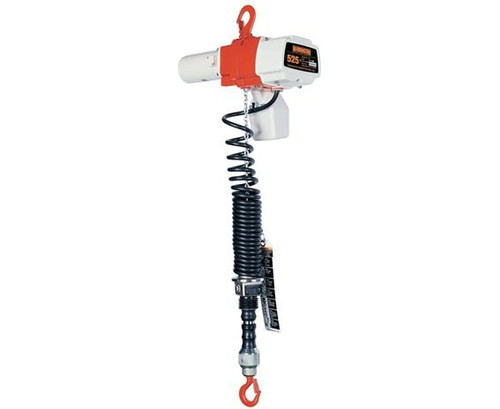

Ergonomic High Speed Electric Chain Hoist

Manufacturer: Harrington Hoists

  • Engineered for maximum operator comfort and control.
  • Single-hand, dual-speed adjustable (DA) cylinder control model is ideal for workbench, assembly and repetitive operations.
  • Single-phase, single-speed (V) model allows user to increase speed with a simple adjustment inside the hoist.

The dual speed ED-DA model also has a quick disconnect hook, allowing for custom end effectors. The single-speed ED-V model has a Smart Speed Technology, which allows the user to change the factory set speed of 16 fpm (8 fpm for 1000 lb. capacity) to a higher speed, within each model's maximum range. Both models are lightweight and have low headroom to fit into tight areas. They are both easy to install, move and store. Call for details.

  • Model Info

10 Models Available for Ergonomic High Speed Electric Chain Hoist

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Control Type Lift Speed (ft./min) Std. Lift Motor Output Control Cord Duty Rating Rated Current @120V Capacity Headroom Weight Price Ea. Qty
HED125DA Cylinder - Dual Speed 69/13 6' 0.4 Coiled 15 5 125 lbs 37.2" 31 lbs $3470.43
HED220DA Cylinder- Dual Speed 43/10 6' 0.4 Coiled 15 5 220 lbs 37.2" 31 lbs $3519.02
HED250DA Cylinder- Dual Speed 26/10 6' 0.4 Coiled 10 6 250 lbs 37.2" 32 lbs $3593.93
HED350DA Cylinder- Dual Speed 66/13 6' 0.8 Coiled 20 10 350 lbs 37.8" 40 lbs $4336.27
HED400DA Cylinder- Dual Speed 26/10 6' 0.4 Coiled 10 6 400 lbs 37.2" 32 lbs $3775.23
HED525DA Cylinder- Dual Speed 44/10 6' 0.8 Coiled 20 10 525 lbs 37.8" 40 lbs $4409.11
HED250V Pendant- Dual Speed 26/16 10' 0.4 8' 20 6 250 lbs 12.4" 24 lbs $1674.94
HED350V Pendant- Dual Speed 44/16 10' 0.8 8' 30 10 350 lbs 13.0" 33 lbs $1674.94
HED500V Pendant- Dual Speed 44/16 10' 0.8 8' 30 10 500 lbs 13.0" 33 lbs $2004.06
HED1000V Pendant- Dual Speed 22/8 10' 0.8 8' 30 10 1000 lbs 20.5" 46 lbs $2178.25
