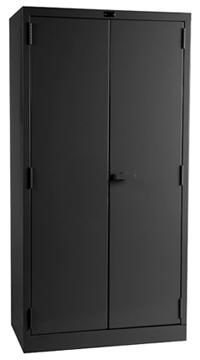

DuraTough All-Welded Galvanite Series Cabinets - Extra Heavy Duty

Manufacturer: Hallowell

DuraTough™ Galvanite Series cabinets are fabricated from galvannealed sheet steel which has a zinc-iron alloy coating that is applied at the mill providing protection against high-humidity and moist environments. This coating also prevents corrosion from spreading when the pain and/or coating is scratched away.

Extra Heavy-Duty cabinets are fabricated from 14 gauge steel which is 25% thicker than 16 gauge providing MAXIMUM durability.

Capacity per Shelf: 1,050 lbs.

Standard Features:

  • All-welded construction
  • Double door design
  • Solid doors are reinforced with an 18 gauge full-height door stiffener providing a rigid torque-free door.
  • 3-point turn handle locking using 3/8" diameter locking rods operated by a 3/16" gauge steel handle (handle painted to match cabinet)
  • Heavy-duty 13 gauge 7-knuckle 3 1/2" butt hinges welded to door and securely riveted to frame
  • Solid sides are formed to be integral with vertical door frame
  • Top is formed to be integral with horizontal bottom door frame and includes double return bends at all four sides maximizing unit rigidity
  • Back is welded to cabinet top, bottom and sides
  • Shelves are formed to provide maximum capacity and are adjustable on 3" centers
  • Shelves bolt to support channels which are welded to sides
    • 78" high storage cabinets include 4-adjustable shelves
    • 60" high storage cabinets include 3-adjustable shelves
    • 42" high storage cabinets include 2-adjustable shelves
    • 78" high combination cabinets include one full width upper shelf, a center partition, 3 partial-width shelves and one partial-width coat rod
  • Optional leg kits are available and can be bolted on to all DuraTough cabinets
  • Color: 738 Charcoal


10 Models Available for
DuraTough All-Welded Galvanite Series Cabinets - Extra Heavy Duty

*Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart
If you are interested in these products, add them to your quote list by clicking the red button below

Model No. Dimensions W x D x H Shelves Type Weight Price ea. Qty
HWG4SC6142-2 36" x 21" x 42" 2 Storage 231 lbs. $1049.00
HWG4SC6160-3 36" x 21" x 60" 3 Storage 300 lbs. $1319.00
HWG4SC6178-4 36" x 21" x 78" 4 Storage 350 lbs. $1399.00
HWG4SC6478-4 36" x 24" x 78" 4 Storage 388 lbs. $1079.00
HWG4SC8460-3 48" x 24" x 60" 3 Storage 388 lbs. $1249.00
HWG4SC8478-4 48" x 24" x 78" 4 Storage 456 lbs. $1149.00
HWG4SC0478-4 60" x 24" x 78" 4 Storage 513 lbs. $1239.00
HWG4CC6478-4 36" x 24" x 78" 4 Combination 438 lbs. $1239.00
HWG4CC8478-4 48" x 24" x 78" 4 Combination 500 lbs. $1349.00
HWG4CC0478-4 60" x 24" x 78" 4 Combination 563 lbs. $1469.00


2 Options Available for
DuraTough All-Welded Galvanite Series Cabinets - Extra Heavy Duty

Option: Additional Shelves - 14 Gauge for Galvanite Series Cabinets

Additional shelves for Hallowell All-Welded Extra Heavy Duty Cabinets.

Model No. Dimensions W x D Weight Price Ea. Qty
HWG4SCS61 36" x 21" 20 lbs. $55.00
HWG4SCS64 36" x 24" 24 lbs. $62.00
HWG4SCS84 48" x 24" 30 lbs. $71.00
HWG4SCS04 60" x 24" 36 lbs. $80.00
DuraTough All-Welded Galvanite Series Cabinets - Extra Heavy Duty Option Image

Option: Leg Kits

Optional 4” leg kit: Leg kits include two full-depth 4” high legs with hardware for bolting on to cabinet bottom. Leg kits can be attached to all Hallowell All-Welded Cabinets.

Note: Leg Kits are fabricated from galvanneal corrosion resistant steel and are easily bolted to cabinet bottom. Includes hardware for field attachment.

Model No. Dimensions W x D x H Weight Price Ea. Qty
HWC4LK-1G 4" x 21" x 4" 15 lbs. $99.00
HWC4LK-4G 4" x 24" x 4" 16 lbs. $99.00
