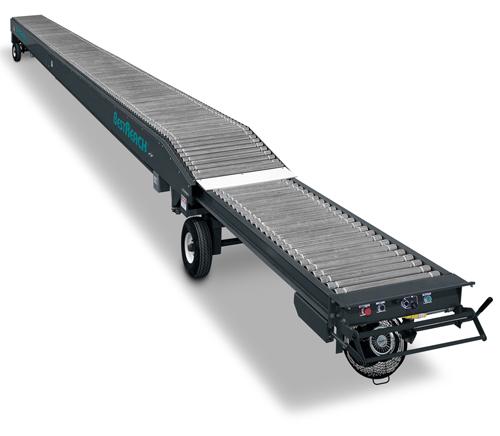

BestReach Rigid Drive-In Roller with Accumulation Conveyors
Supplier: FMH Conveyors
The only extendable conveyor capable of giving your workflow the extra boost in productivity. Reach from your permanent conveyor all the way into your trailer with ease. Power in-and-out with no operator effort for improved ergonomics. "Bullet Proof" steel construction withstands punishing conditions and hard impacts. Fluid loading has never been this easy.
Accumulation Conveyor Advantages
- First-class versatility
- Easy attachment from any static conveyor into any stationary truck trailer
- Gives an extra boost to workflow productivity
Features
- Comes in seven (7) standard models available with pull-out extension (see product chart below)
- 33.5" overall width (approx)
- 29" roller width (approx)
- 12" ground clearance
- 10 degree left to right steering with joy stick
- 36" to 48" fixed infeed height
- 28" to 40" fixed discharge height
- 0 to 120 FPM bed speed
- 3" axle centers
- 40" to 49" accumulation zone lengths
- 60 FPM in and out travel speed (approx)
- 1.5 HP heavy duty motor
- 100 lbs. capacity per linear foot
- 1,000 lbs maximum line load at any given time
- 480 VAC 3 phase electrical requirements
- Large 17" solid rubber tires never go flat and easily move over uneven floors and dock plates
- Dry contact to feeder conveyor for emergency stop
- Input from feeder conveyor for emergency stop
- Interlock signal to feeder conveyor for full line
- Power in-and-out with no operator effort for improved ergonomics
- "Bullet Proof" steel construction withstands punishing conditions and hard impacts
Performance Options
- Fan at discharge end for operator comfort
- Light at discharge end for added safety
- Variable 0-200 FPM bed speed
- 4.5" axle centers
- 240 VAC 3 Phase
Fluid Loading and Unloading Applications
- Utilizes every square inch of your trailers
- Eliminates the costly "dead-space" wasted by pallets
- Improves the efficiency of your business
- Use in cross-decking applications to move cartons from one truck to another or to a take-away conveyor for immediate routing to shipping
- Ideal for loading and unloading at the dock door
