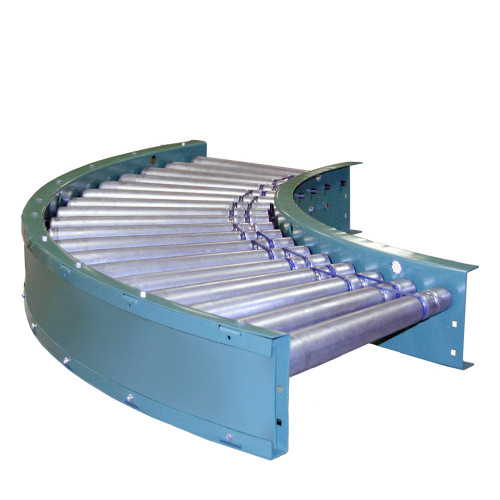

796PRAC Powered Roller Accumulator Curve Photo Eye Controlled

FOB: Midwest Warehouse

Roach's Powered Roller Accumulator Curve Photo Eye Controlled is designed to complement the Powered Roller Zero Pressure Accumulator conveyor. This conveyor comes in 30, 45, 60 and 90 degree modules.

Specifications:

• Tread Rollers: 2-1/2" dia. to 1-11/16" dia. x 14 gauge steel tapered rollers, model 254T
• Drive Belt: 3/16" dia., polyurethane belts. Nominal 15 lbs. per roller drive
• Capacity: 15 lbs. per roller or up to 70 lbs. per zone
• Speed: 60 FPM, constant
• Roller Centers: 3" roller centers
• Bed: 7" x 1-3/4" x 12 gauge formed steel channel frame. Rollers set low in frame
• Accumulation: Zone singulation operation; 24" zone length; zones are actuated using a photoeye
• Motor Drive: Indirect driven by 24 VDC Powered Roller
• Bearings: Precision ABEC bearings
• DC Power Supply: 24 volt fixed output required
